Warplanes of Germany: Luftwaffe Bachem Ba 349 Natter
German Luftwaffe Warplanes: Bachem Ba 349 Natter
Deutsche Flugzeuge aus dem Zweiten Weltkrieg: Bachem Ba 349 Natter
The aim of this website is to locate, identify and document Warplanes from the Second World War that have been preserved. Many contributors have assisted in the hunt for these aircraft to provide and update the data on this website. Photos are as credited. Any errors found here are by the author, and any additions, corrections or amendments to this list of Warplane Survivors of the Second World War would be most welcome and may be e-mailed to the author at hskaarup@rogers.com.
Ziel dieser Website ist es, erhaltene Kampfflugzeuge aus dem Zweiten Weltkrieg zu lokalisieren, zu identifizieren und zu dokumentieren. Viele Mitwirkende haben bei der Suche nach diesen Flugzeugen mitgewirkt, um die Daten auf dieser Website.bereitzustellen und zu aktualisieren. Fotos gelten als gutgeschrieben. Alle hier gefundenen Fehler sind vom Autor und Ergänzungen, Korrekturen oder Ergänzungen zu dieser Liste der Überlebenden des Zweiten Weltkriegs sind sehr willkommen und können per E-Mail an den Autor unter hskaarup@rogers.com gesendet werden.
(Luftwaffe Photos)

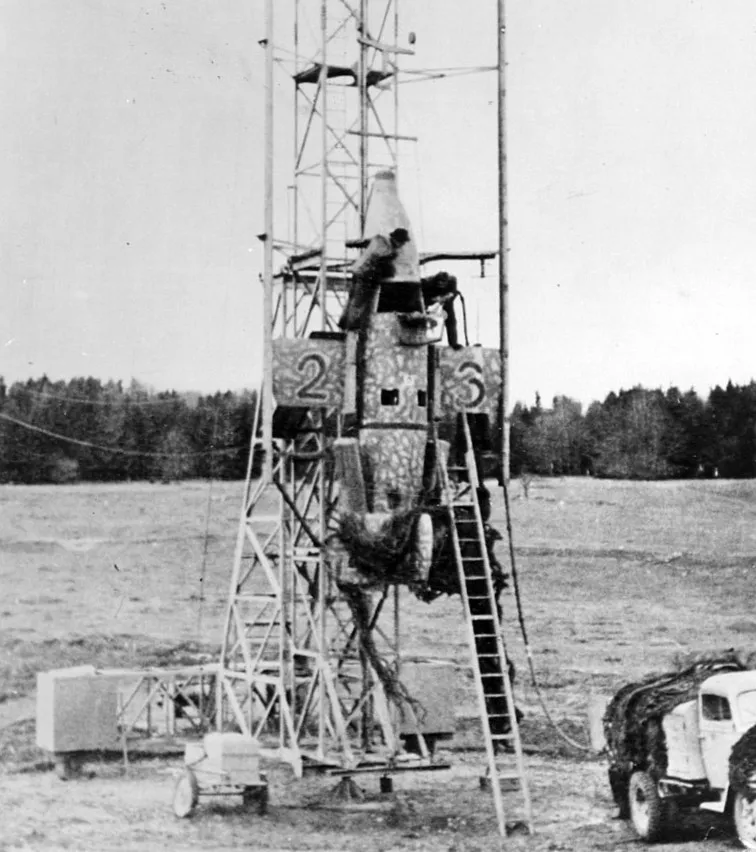

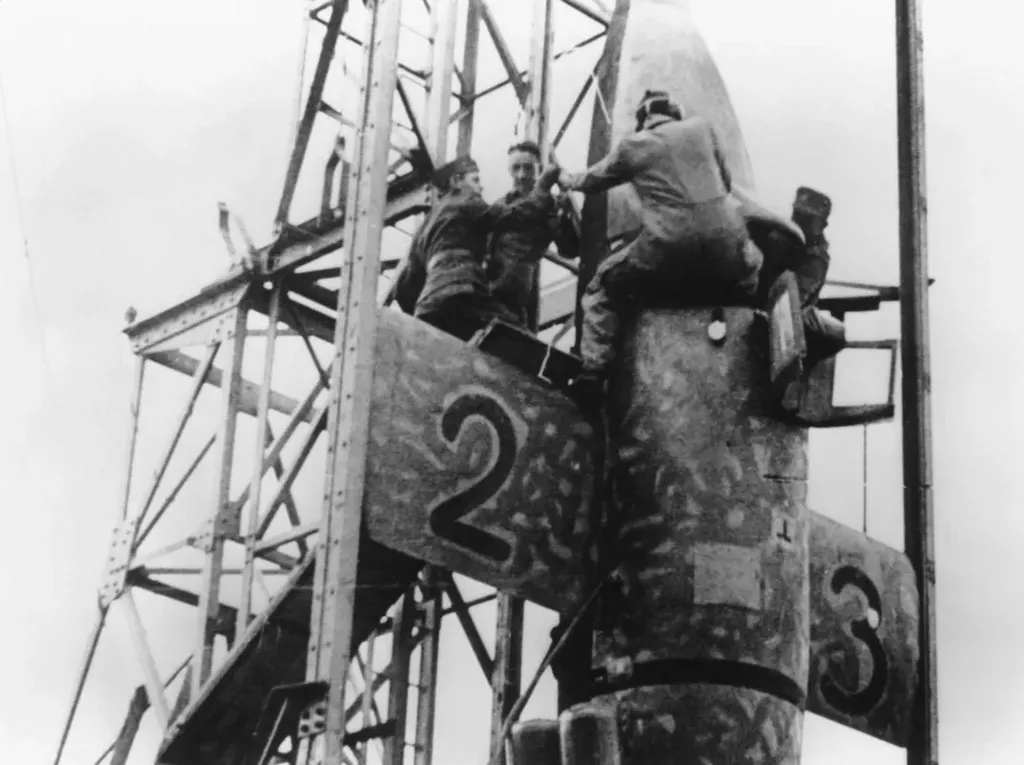

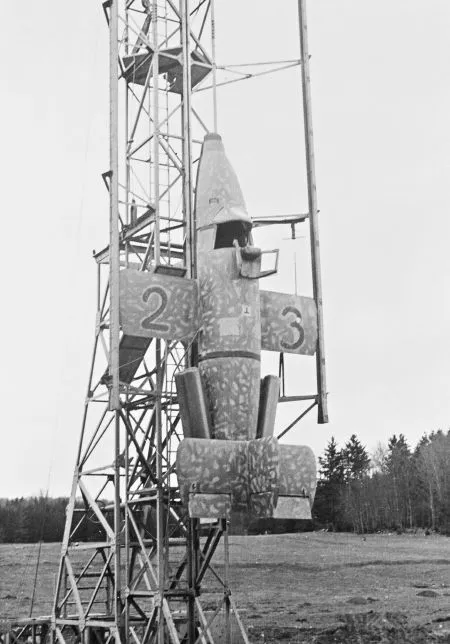

Bachem Ba 349A-1 Natter in the vertical launch position in Germany, 1945.
The Bachem Ba 349A Natter is a single-seat part-expendable target-defence interceptor powered by one 3,748-lb thrust Walter HWK 109-509A-2 bi-propellant rocket motor and four 2,640-lb thrust Schmidding 109-533 booster rockets. It was launched vertically, and had a maximum speed of 497-mph, a climb-rate of 36,415 ft per minute and a service ceiling of 45,920’. It had a radius of action at 39,360’ of 25 miles. The Natter weighed 4,840 lbs at takeoff. It had a wing span of 12 feet, and a length of 20 feet.
(US Army Photos)

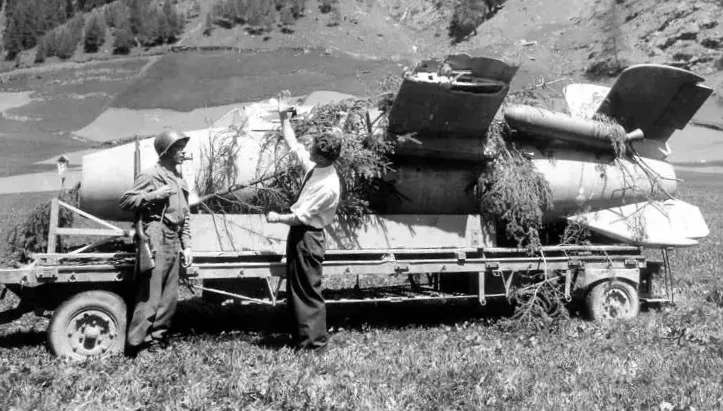

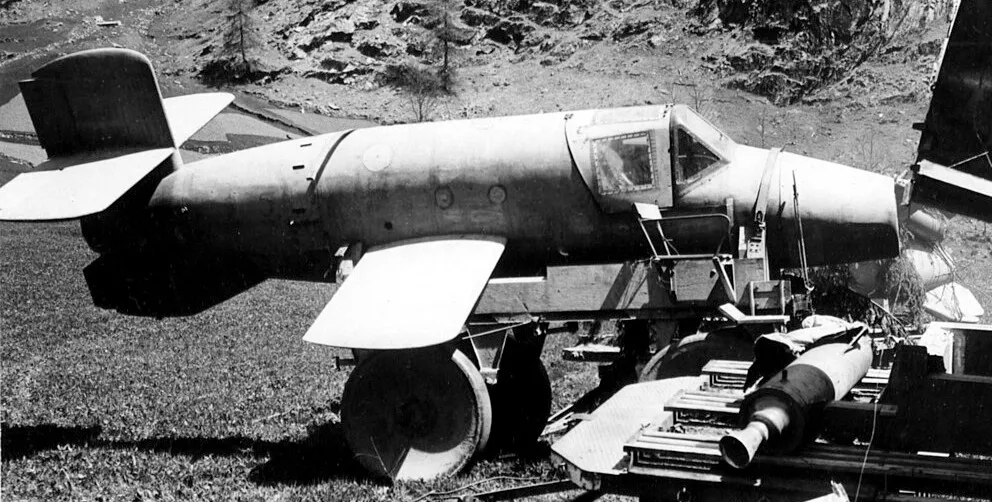

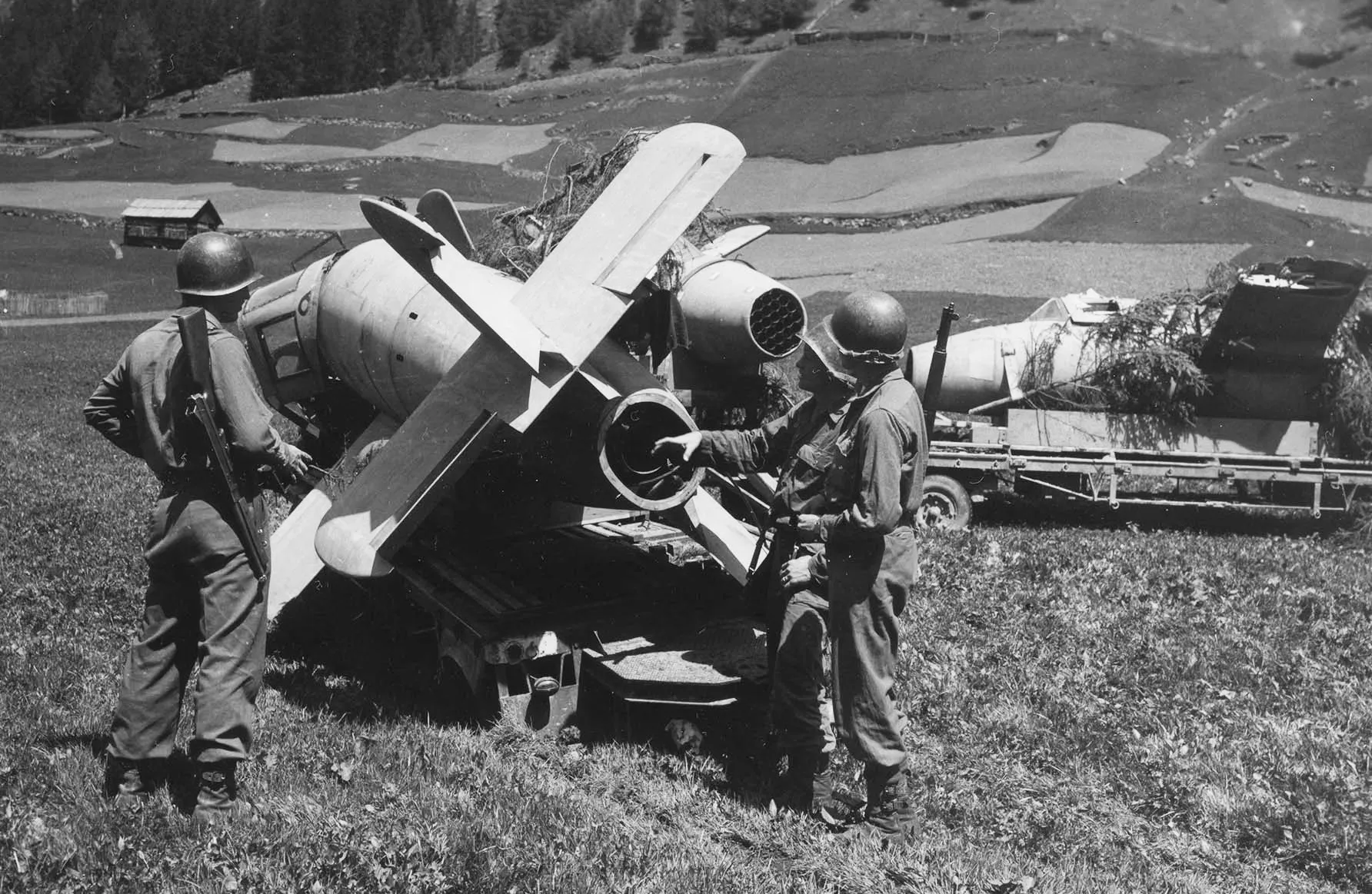

Bachem Ba 349A-1 Natter recovered in Germany by American troops at St. Leonhard im Pitztal, Austria in May 1945.
(Aconcagua Photo)
Bachem Ba 349A-1 Natter replica on display in the Deutsches Museum, Munich, Germany. This Natter is said to have been reconstructed partly from sub-assemblies that survived the end of the war. This machine is of the experimental type as launched from the steel tower and is painted to look like an M17.
(USAAF Photos)
Bachem Ba 349 Natter in the USA, being prepared for storage with the NASM. This Natter was recovered in Germany by American troops at St. Leonhard im Pitztal, Austria in May 1945.
(USAAF Photos)

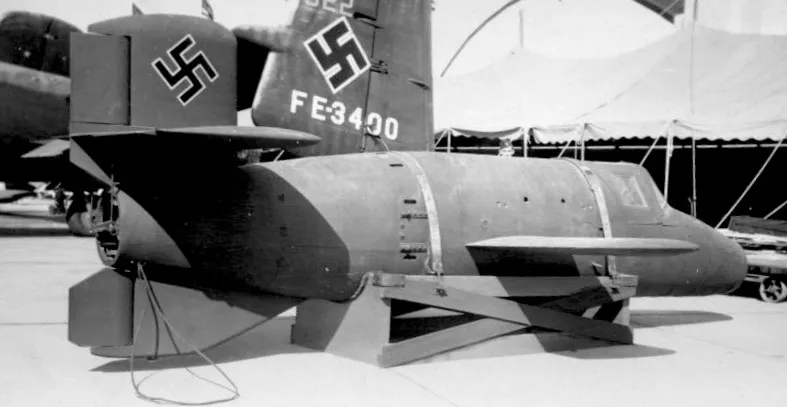

Bachem Ba 349 Natter on display in the USA, prior to being stored with the NASM. This Natter was recovered in Germany by American troops at St. Leonhard im Pitztal, Austria in May 1945.
(SDASM Photo)
Bachem Ba 349 Natter on display in the USA, prior to being stored with the NASM.
(Edgar Diegan Photo)
Bachem Ba 349 Natter on display in the USA.
(Creanium Photo)
Bachem Ba 349A-1, T2-1 in the Smithsonian Institute National Air and Space Museum’s Paul E. Garber Preservation, Restoration, and Storage Facility. This Natter was recovered in Germany by American troops at St. Leonhard im Pitztal, Austria in May 1945.
The Natter’s weapon systems were simple and potentially devastating. They comprised either a honeycomb loaded with 24 electrically fired 73-mm Föhn spin-stabilized unguided air-to-air rockets, or 33 R4M 55-mm spin-stabilized rockets, or (projected) two 30-mm MK 108 cannon each with 30 rpg .or 32 R40 air-to-air missiles located behind a jettisonable cover in nose section. The alternative, the Rheinmetall SG 119 consisted of six clusters, each cluster containing seven MK108 barrels grouped together in a cylinder with the clusters arranged about the Viper’s nose as in a revolver.
In April 1945, French armour advanced into Waldsee near Berlin, where the Natter’s were being assembled, and captured a great number of spare parts. Only a few days before the French arrived, fifteen rocket engines destined for Vipers had been thrown into Lake Waldsee to prevent their capture. The secret was not well kept however and all were later recovered.
Plans for mass production of the Ba 349 A-1 were authorized on 1 March 1945, but only a few Natters were actually completed. These were followed by the improved Ba 349 B-1 (Entwurf 2) interceptors which were to be produced at Waldsee, but few were actually completed.

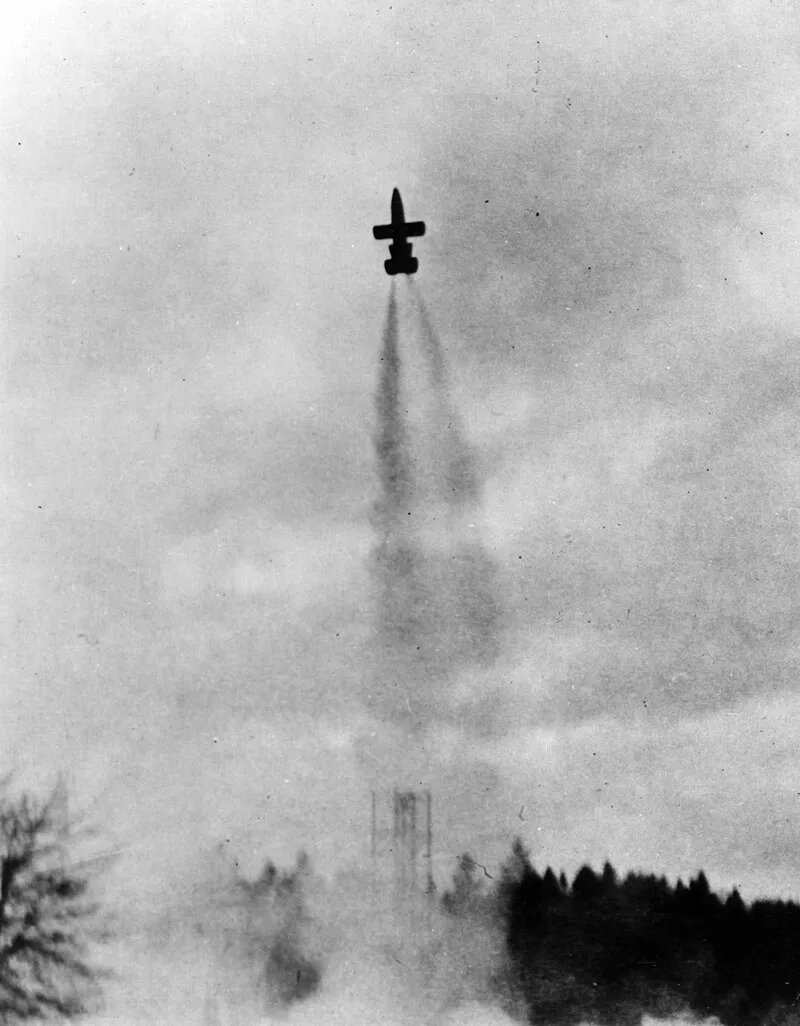

One of the models was powered by a solid-fuel rocket to evaluate takeoff characteristics. Practical tests were carried out at Peenemünde, where a first test conducted during February 1945, proved unsuccessful. Willy A. Fiedler, a testing engineer working for the RLM, was sent to the Heuberg Hills to oversee the program. Erich Bachem is quoted after the war as having said that about twenty Vipers had been used for practical tests. Fifteen were of the A-series, and four B-series aircraft. All were constructed at Waldsee. Still others were assembled by the Wolf Hirth glider factory. Four additional Ba 349s, possibly of the B-series, were captured at the end of the war by Allied forces near St. Leonhard, Austria.
Only two Bachem Natters are known to exist. The NASM has an original Ba 349A-1 Natter. It appears that this machine was captured at St. Leonhard in the Pitztal, Austria in May 1945 by US troops. It was then shipped to Freeman Field, Indiana, for analysis. Captured equipment number T2-1 was assigned to the Natter and the USAF transferred it to the National Air Museum (now the NASM) on 1 May 1949.
The Deutsches Museum, Munich, Germany, displays a Ba 349A-1 which is a partial replica, and is restored in the colours and markings of one of the unmanned test aircraft. This machine is of the experimental type as launched from the steel tower and is painted to look like M17. The Natter displayed at the Deutsches Museum is said to have been reconstructed partly from sub-assemblies that survived the end of the war.
There are several static reproductions of Natters around the world, for example at the “Planes of Fame“, Chino, California and “Fantasy of Flight“, Polk City, Florida, USA.
(Author Photos)
Bachem Ba 349A-1, Fantasy of Flight Museum, Polk City, Florida.
