Fort Erie

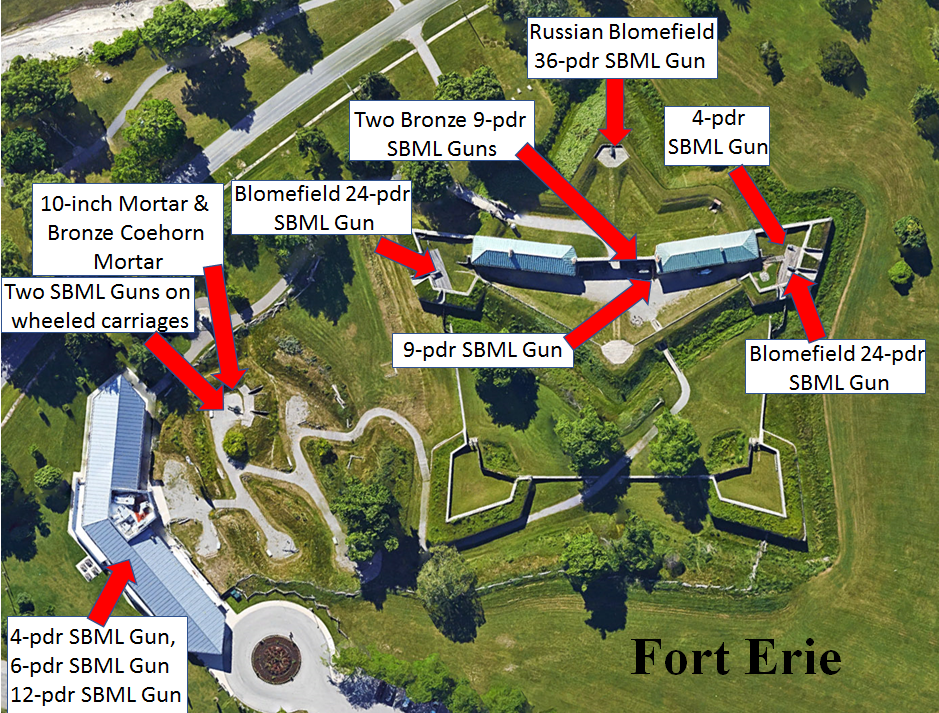

Diagram showing the placement of cannon at Fort Erie.

(Author Photos)

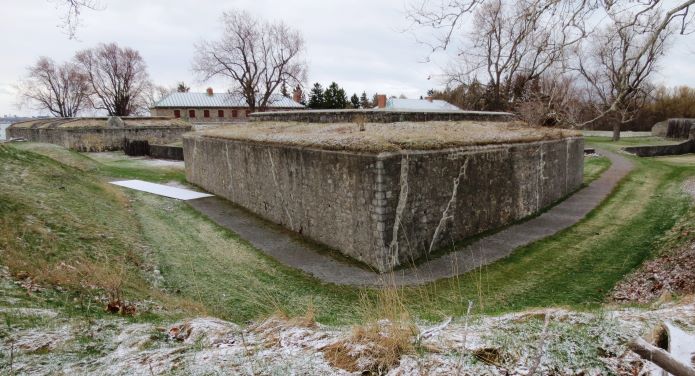

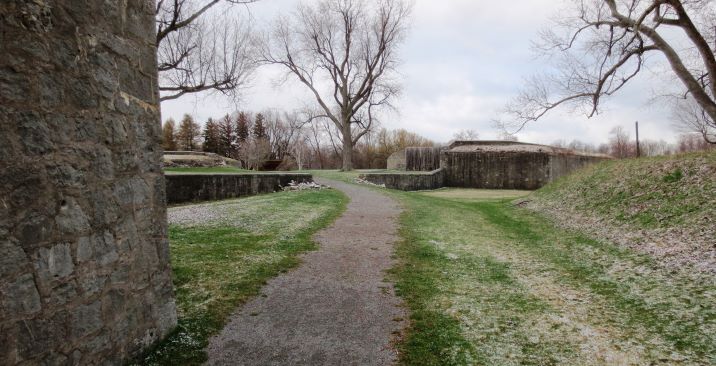

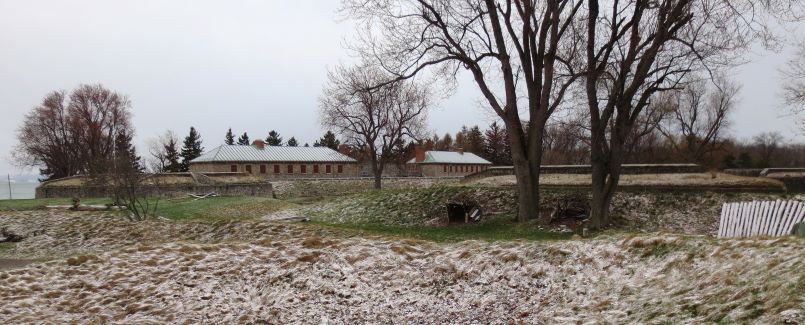

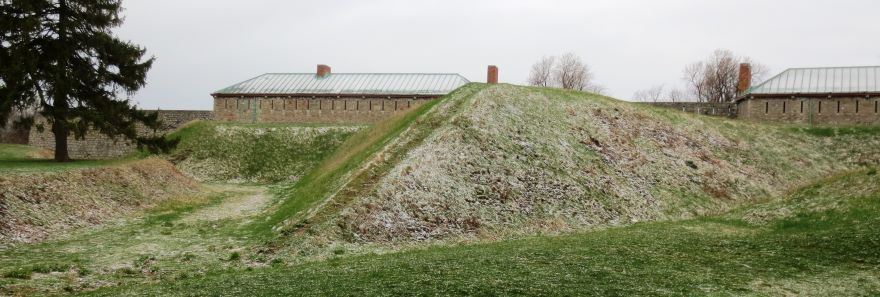

Fort Erie.

‍

(Author Photos)

Fort Erie, commemorative plaques and memorials.

(Author Photos)

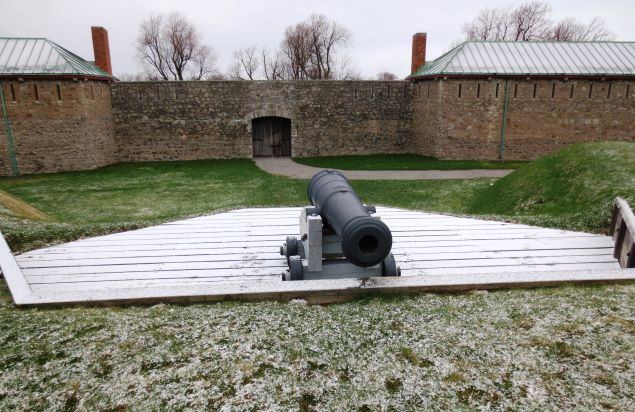

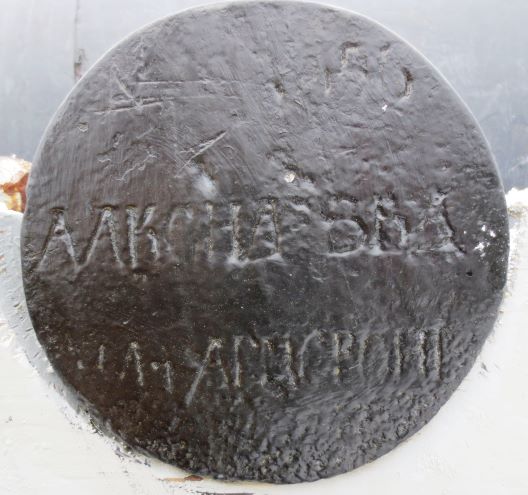

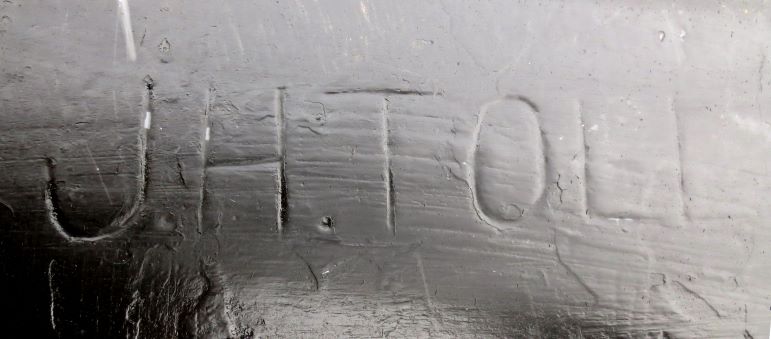

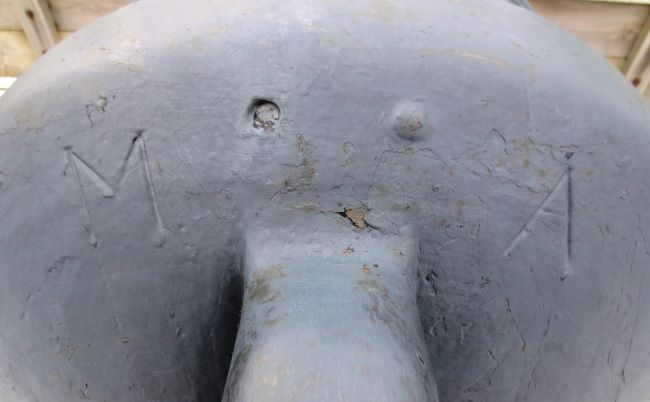

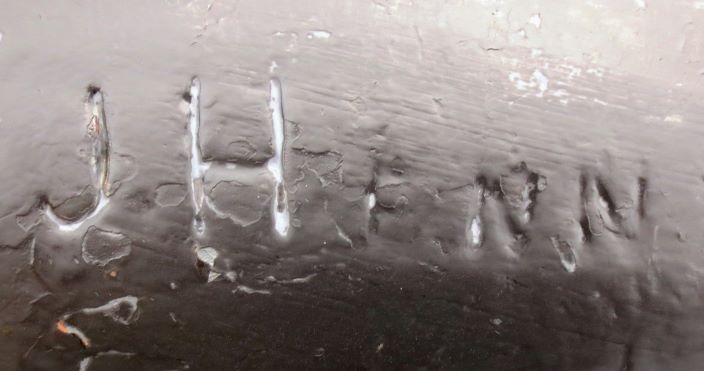

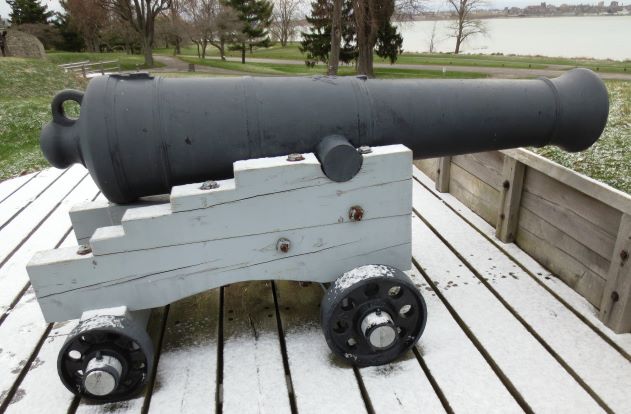

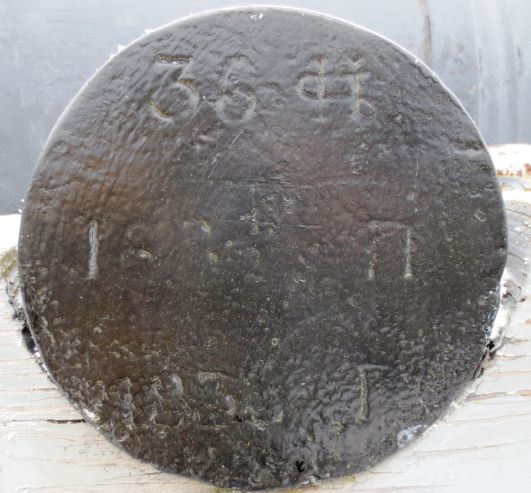

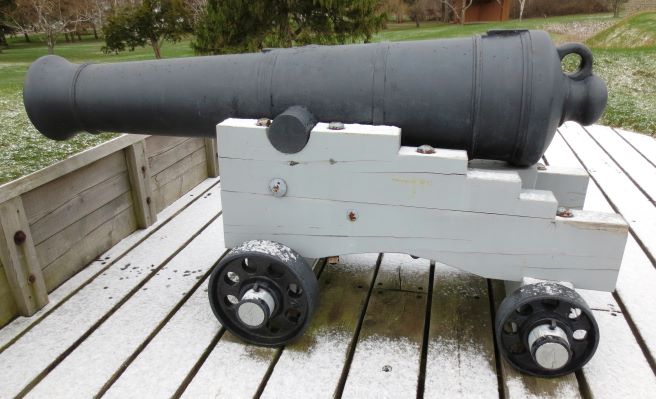

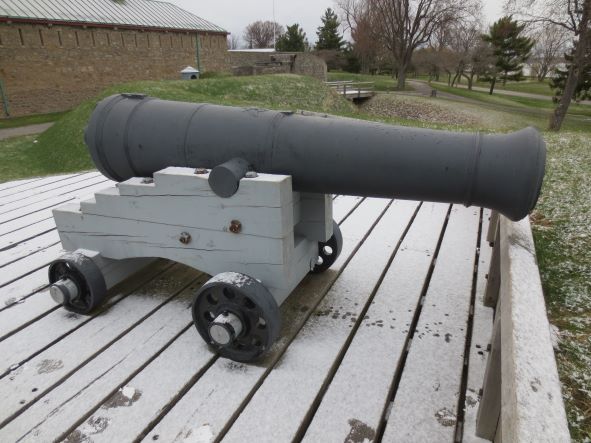

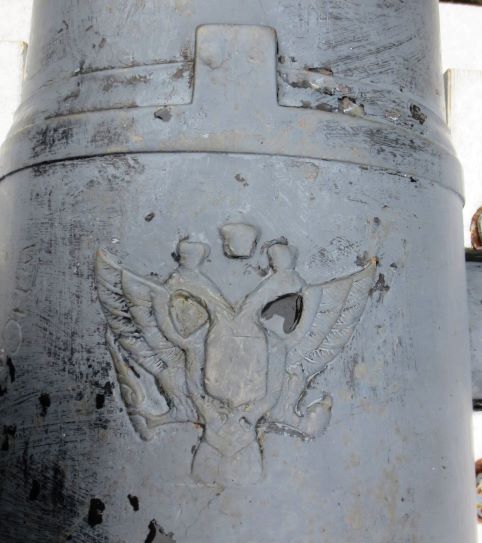

Russian Blomefield pattern Cast Iron 36-pounder Smoothbore Muzzleloading Gun, made by Armstrong, at Alexandrovski, with double-headed Eagle, Crimean War trophy.  ML, (Serial No. 433G), 1632P, 1835.  Mounted on a wood naval gun carriage located on a redoubt facing south inside Fort Erie.

(Author Photos)

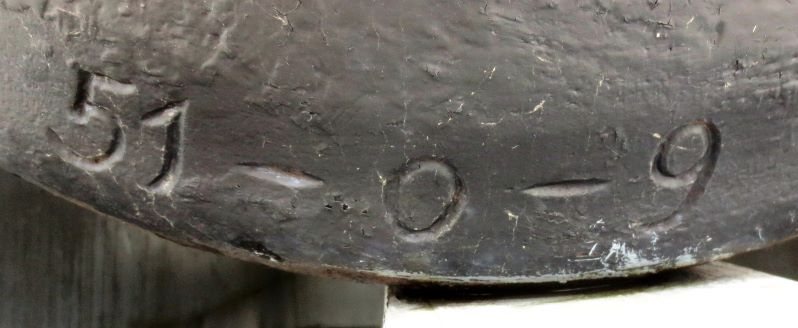

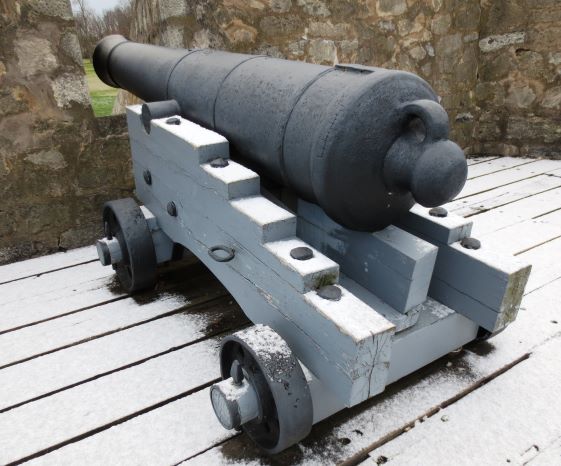

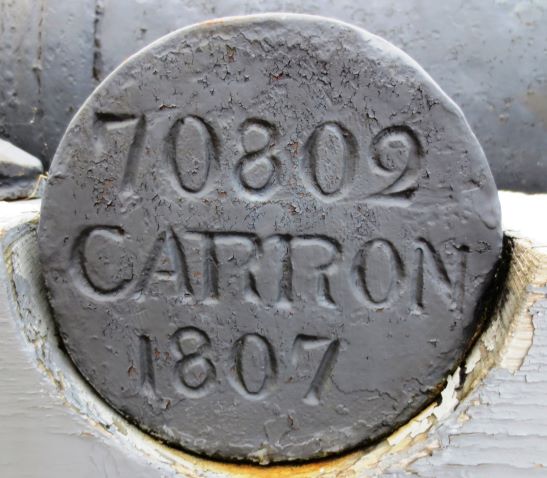

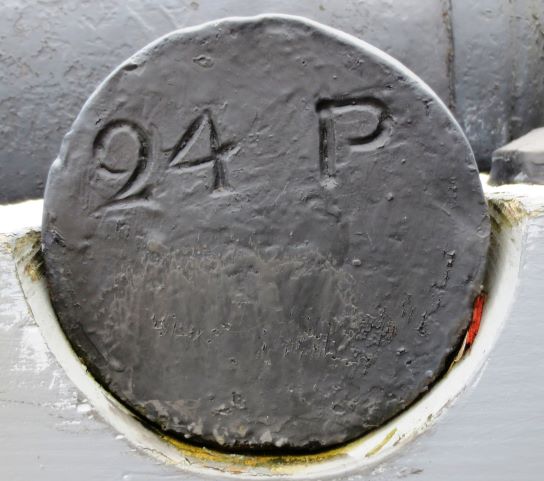

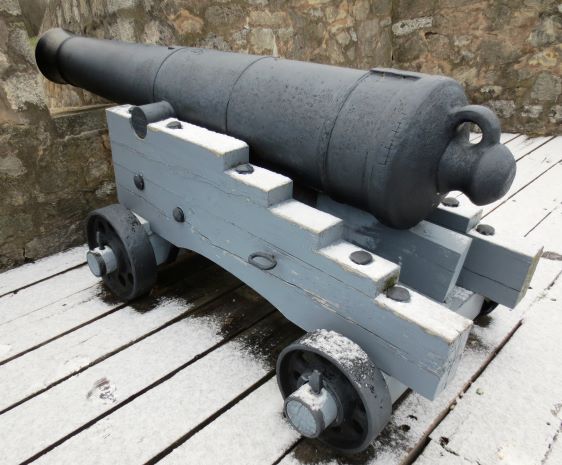

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, weight 51-0-9 (5,721 lbs), (Serial No. 70802, CARRON, 1807) Carron of Falkirk, Scotland, on the left trunnion, (24P) on the right trunnion, King George III cypher, broad arrow mark, mounted wood naval gun carriage.

(Author Photos)

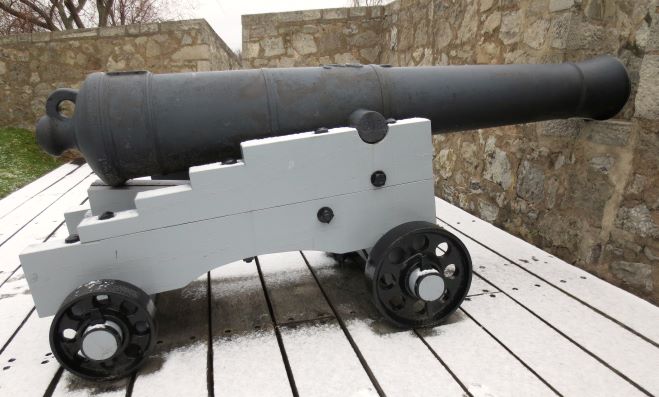

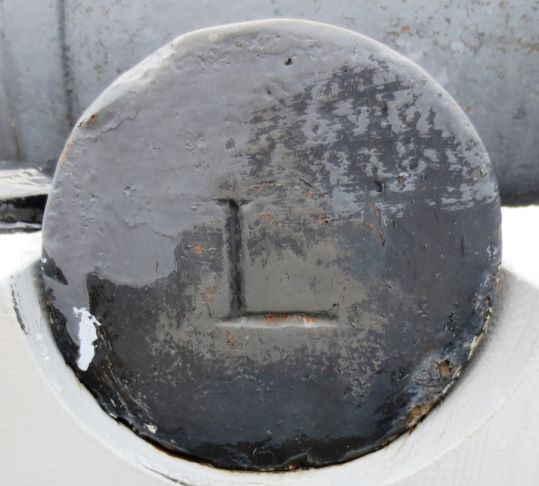

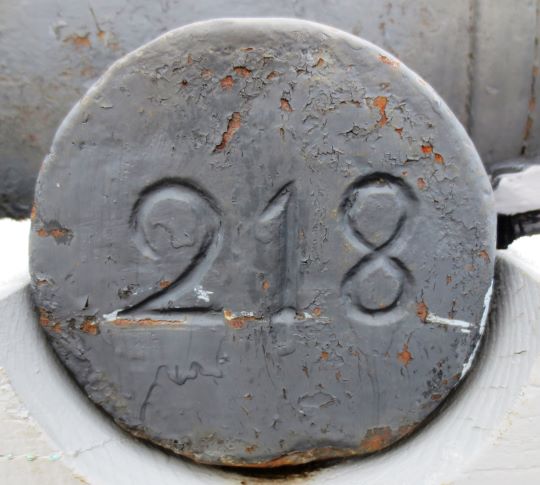

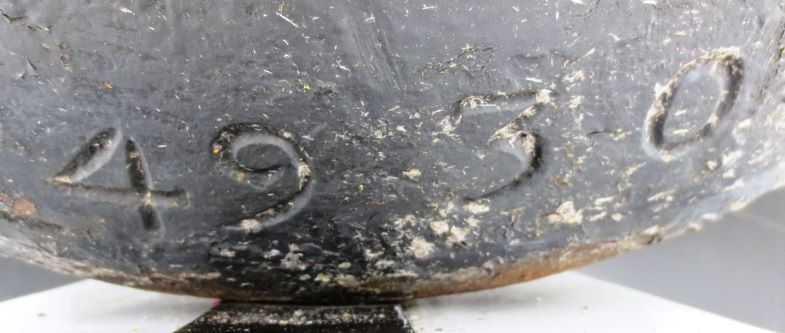

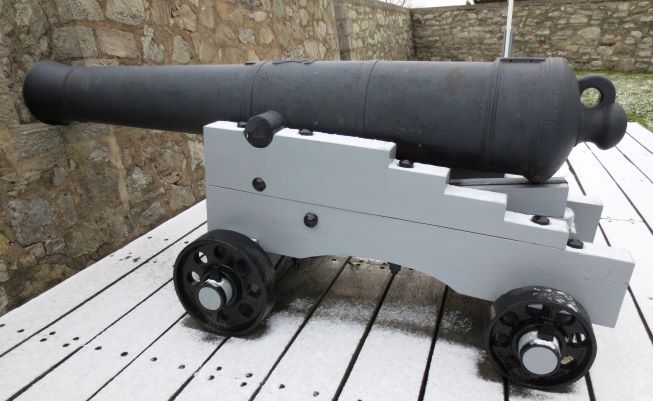

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, weight 49-3-0 (5,572 lbs) under the cascabel, (L) Low Moor, England, on the left trunnion, (Serial No. 218) on the right trunnion, King George III cypher, broad arrow mark, mounted on a wood naval gun carriage, on a redoubt facing West.

The broad arrow was used in England (and later Britain), apparently from the early 14th century, and more widely from the 16th century, to mark objects purchased from the monarch’s money, or to indicate government property. It became particularly associated with the Office or Board of Ordnance, the principal duty of which was to supply guns, ammunition, stores and equipment to the King’s Navy.

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, weight 53-2-7 (5,999 lbs), King George III cypher, (not observed).

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, weight 51-0-13 (5,725 lbs), King George III cypher, (not observed).

(Author Photos)

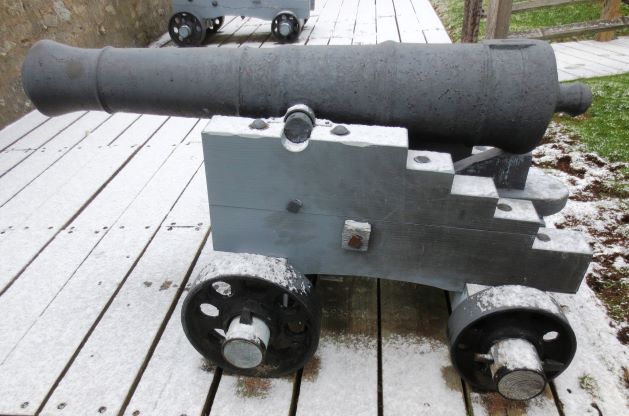

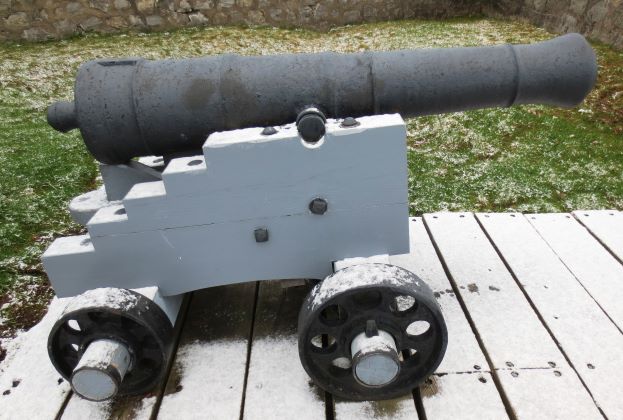

Cast Iron 4-pounder Smoothbore Muzzleloading Gun, no cypher, no markings, mounted on a naval gun carriage, on a redoubt facing West.

Cast Iron 4-pounder Smoothbore Muzzleloading Gun, 1798 DLCCCVI, reproduction, copied from a piece from Fort York.

Cast Iron 6-pounder Smoothbore Muzzleloading Gun, recovered from the USS Detroit which was sunk during the War of 1812.  Museum Visitor Center.

(Author Photos)

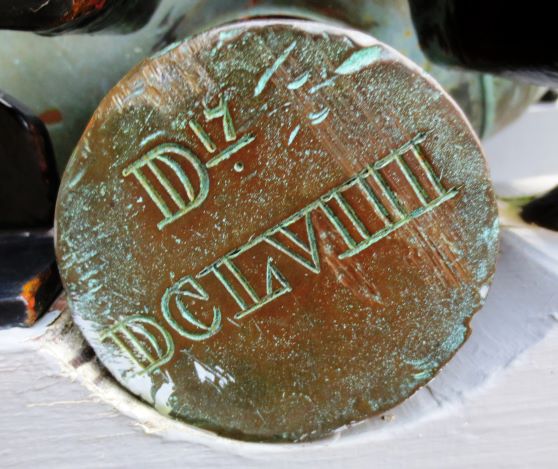

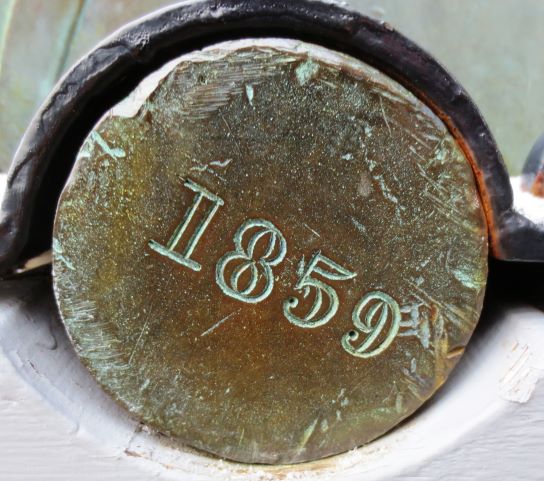

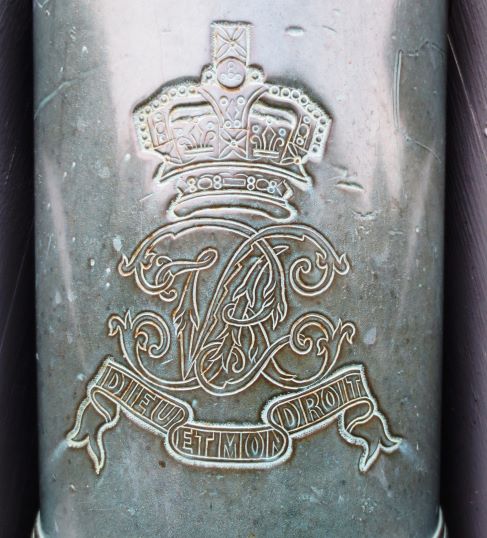

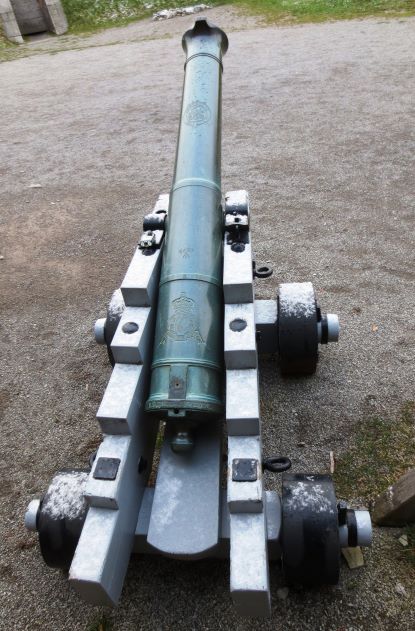

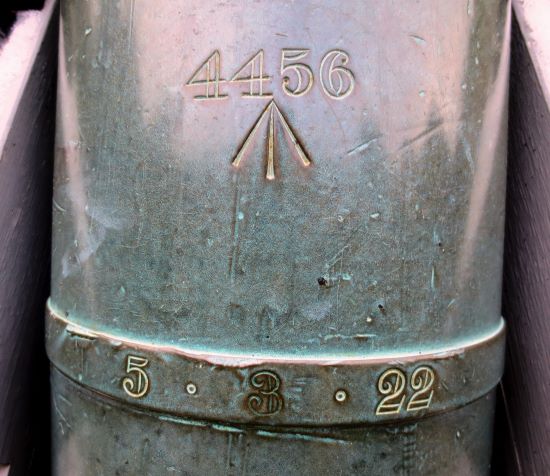

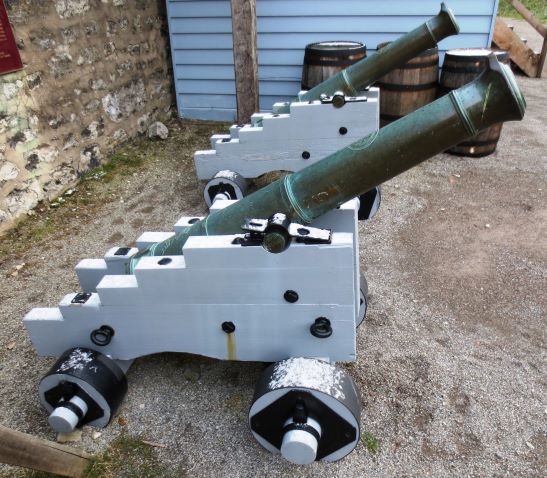

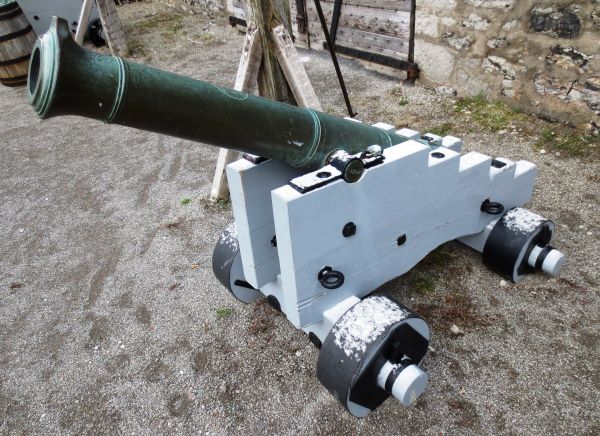

Bronze 9-pounder Smoothbore Muzzleloading Gun, weight 5-3-22 (666 lbs), D17 over DLCVIII on the left trunnion, 1859 on the right trunnion, F.M. EARDLEY-WILMOT (Frederick Marow Eardley-Wilmot)(Superintendant of the Royal Gun Factory at Woolwich, England cypher above the Queen Victoria cypher, DIEU ET MON DROIT, broad arrow mark, Serial No. 4456, mounted on a naval gun carriage, inside Fort Erie, No. 1 of 2.

(Author Photos)

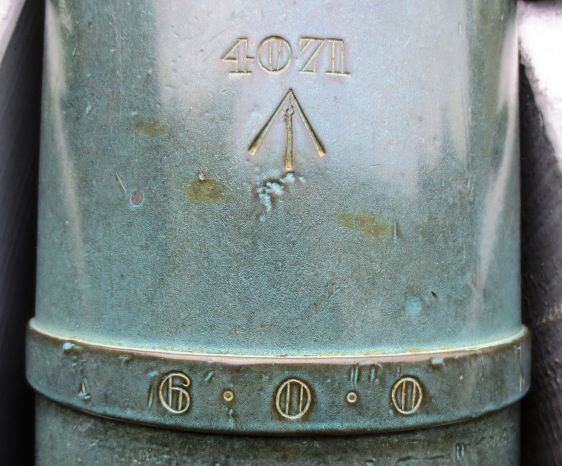

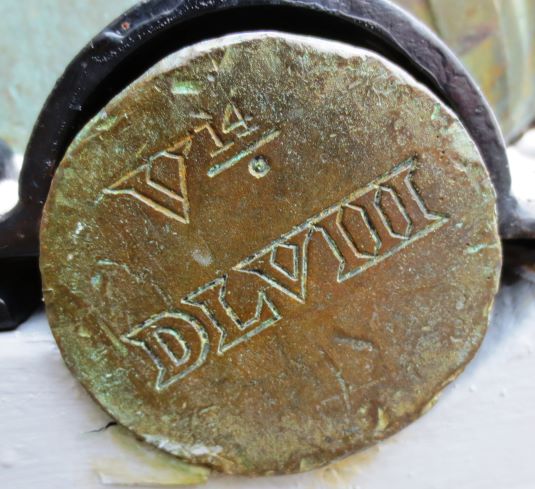

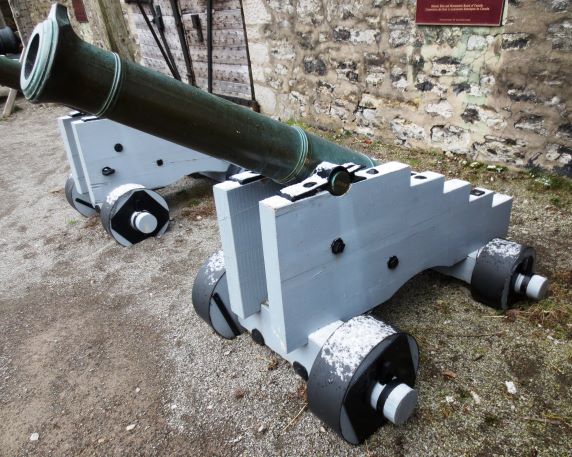

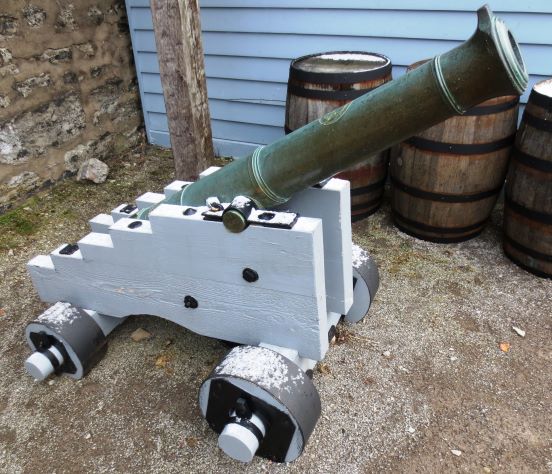

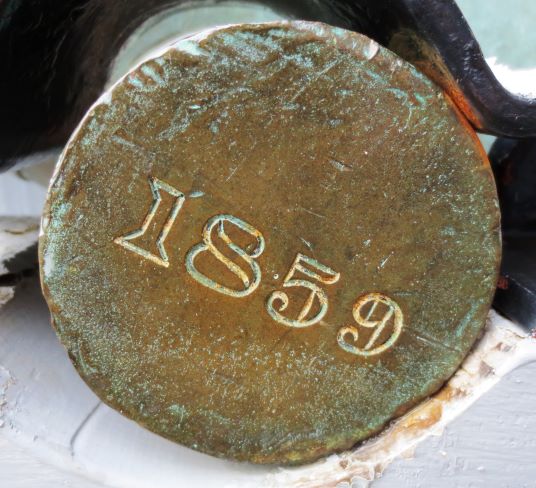

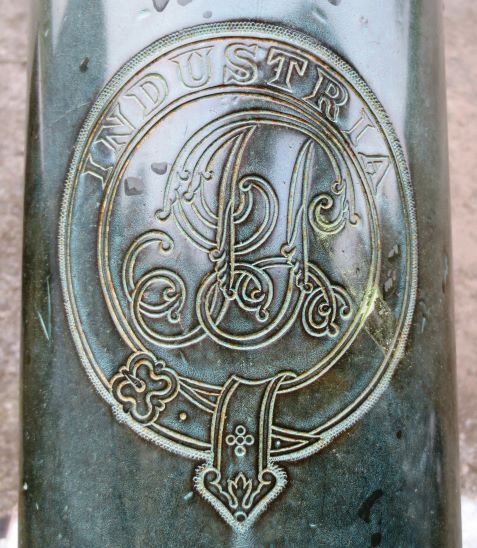

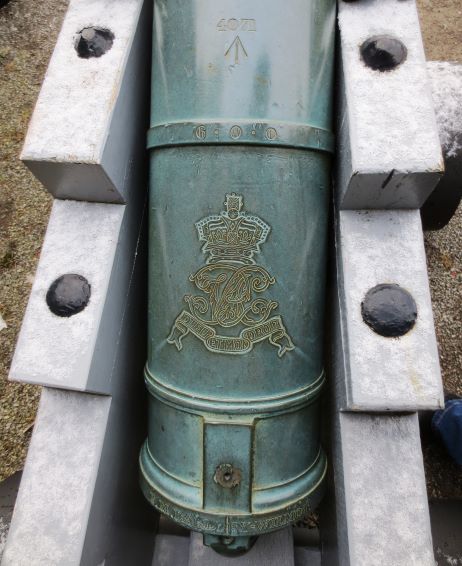

Bronze 9-pounder Smoothbore Muzzleloading Gun, weight 6-0-0 (672 lbs), V14 over DLVIII on the left trunnion, 1859 on the right trunnion, F.M. EARDLEY-WILMOT (Frederick Marow Eardley-Wilmot)(Superintendant of the Royal Gun Factory at Woolwich, England cypher over Queen Victoria cypher, DIEU ET MON DROIT, broad arrow mark, Serial No. 4071, mounted on a naval gun carriage, inside Fort Erie, No. 2 of 2.

(Author Photos)

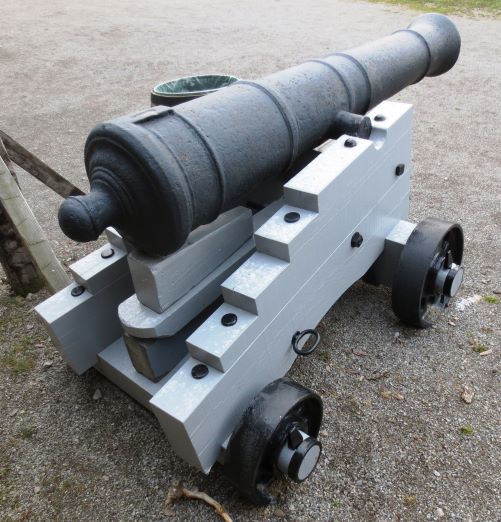

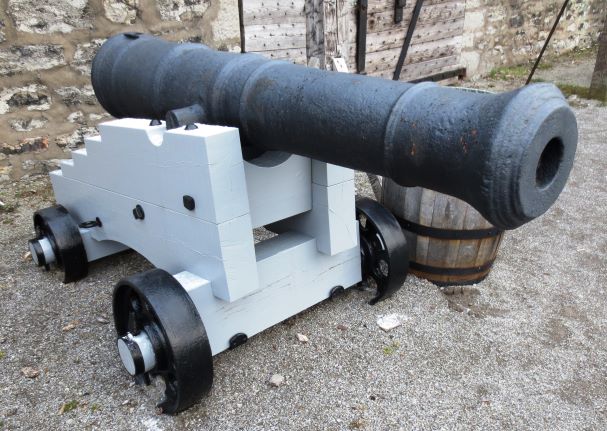

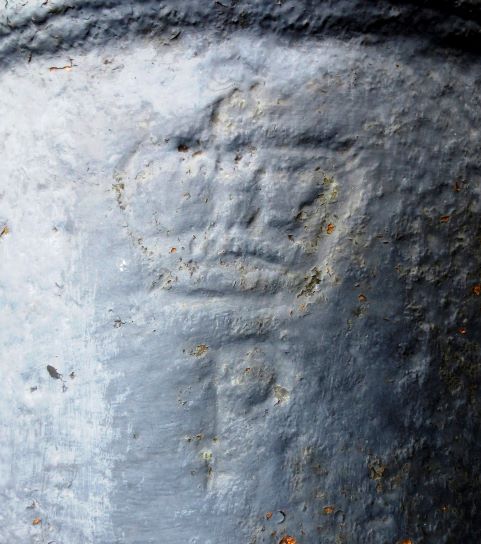

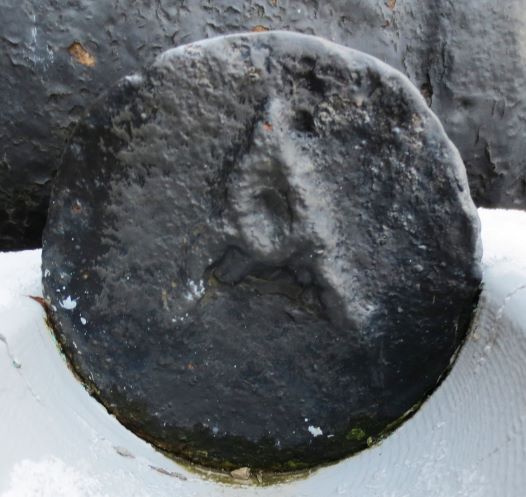

Cast Iron 9-pounder Smoothbore Muzzleloading Gun, weight 16-2-20 (1,860 lbs), Crown over P on the barrel, R, A on right trunnion, mounted on a wood naval gun carriage, inside Fort Erie.

Cast Iron 12-pounder Smoothbore Muzzleloading Gun, weight 31-0-13 (3,485 lbs), pre-1759.  Museum Visitor Center.

Cast Iron 12-pounder Smoothbore Muzzleloading Carronade with a Blomefield pattern breeching ring, weight unknown.

Cast Iron 18-pounder Smoothbore Muzzleloading Gun, weight unknown, King George III cypher, reproduction.

Bronze Coehorn 4.65-inch (12-pounder) Mortar, weight unknown, King George II cypher.

(Lanabird Photo)

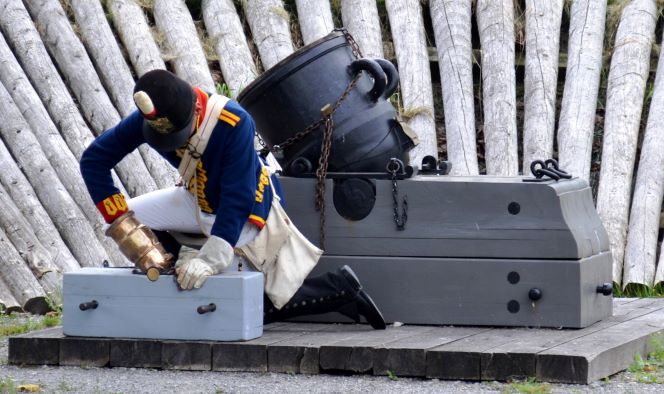

Cast Iron 10-inch Smoothbore Muzzleloading Land Service Mortar with Dolphin carrying handles, weight unknown, reproduction.

Gananoque

(Terry Honour Photo)

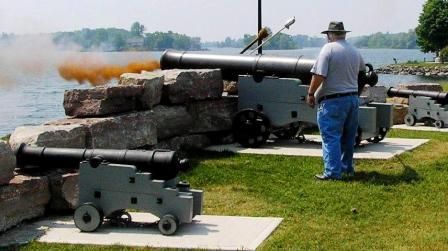

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, weight 51-2-7 (5,775 lbs), 1807, (Serial No. 708990, CARRON, 1807) Carron of Falkirk, Scotland, on the left trunnion, (24P) on the right trunnion, King George III cypher, broad arrow mark, mounted on a wood naval gun carriage.  Joel Stone Heritage Park, Water Street and Kate Street

Cast Iron 6-pounder Smoothbore Muzzleloading Gun, mounted on a wooden carriage, King George II cypher, H & S No. 3 on the left trunnion.  This guns stands on the left side of the 24-pounder (possible replica).  Joel Stone Heritage Park, Water Street and Kate Street.

Cast Iron 6-pounder Smoothbore Muzzleloading Gun, mounted on a wooden carriage, King George II cypher, H & S No. 1.  This gun stands on the right side of the 24 pounder (possible replica).  Joel Stone Heritage Park, Water Street and Kate Street.

Georgetown

(Terry Honour Photos)

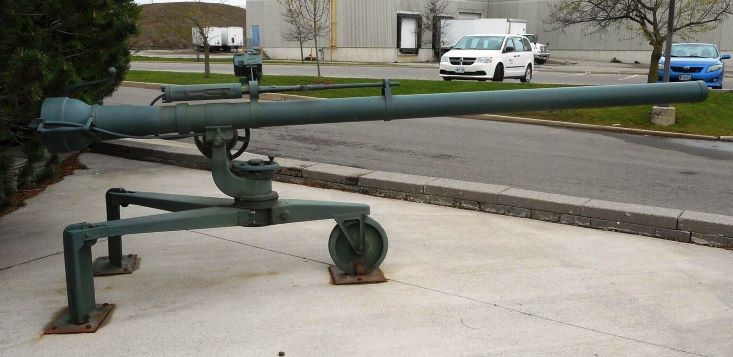

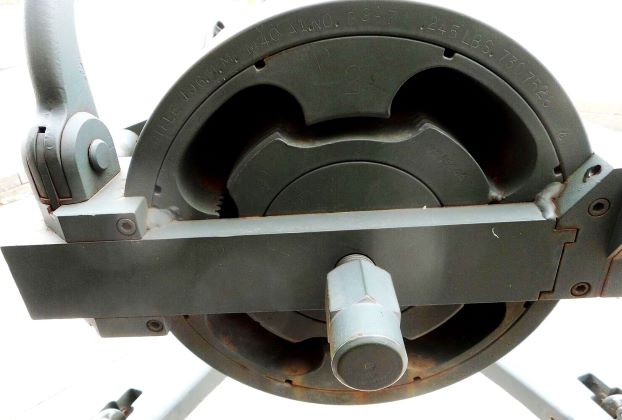

106-mm Recoiless Rifle.

105-mm L5 Pack Howitzer.

Georgina

(Andre Blanchard Photo)

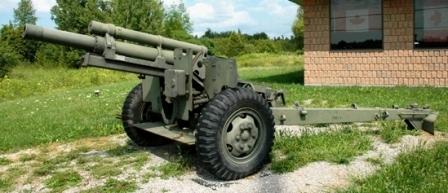

105-mm C1A1 M2A2 Howitzer.

Goderich

(Internet Photo)

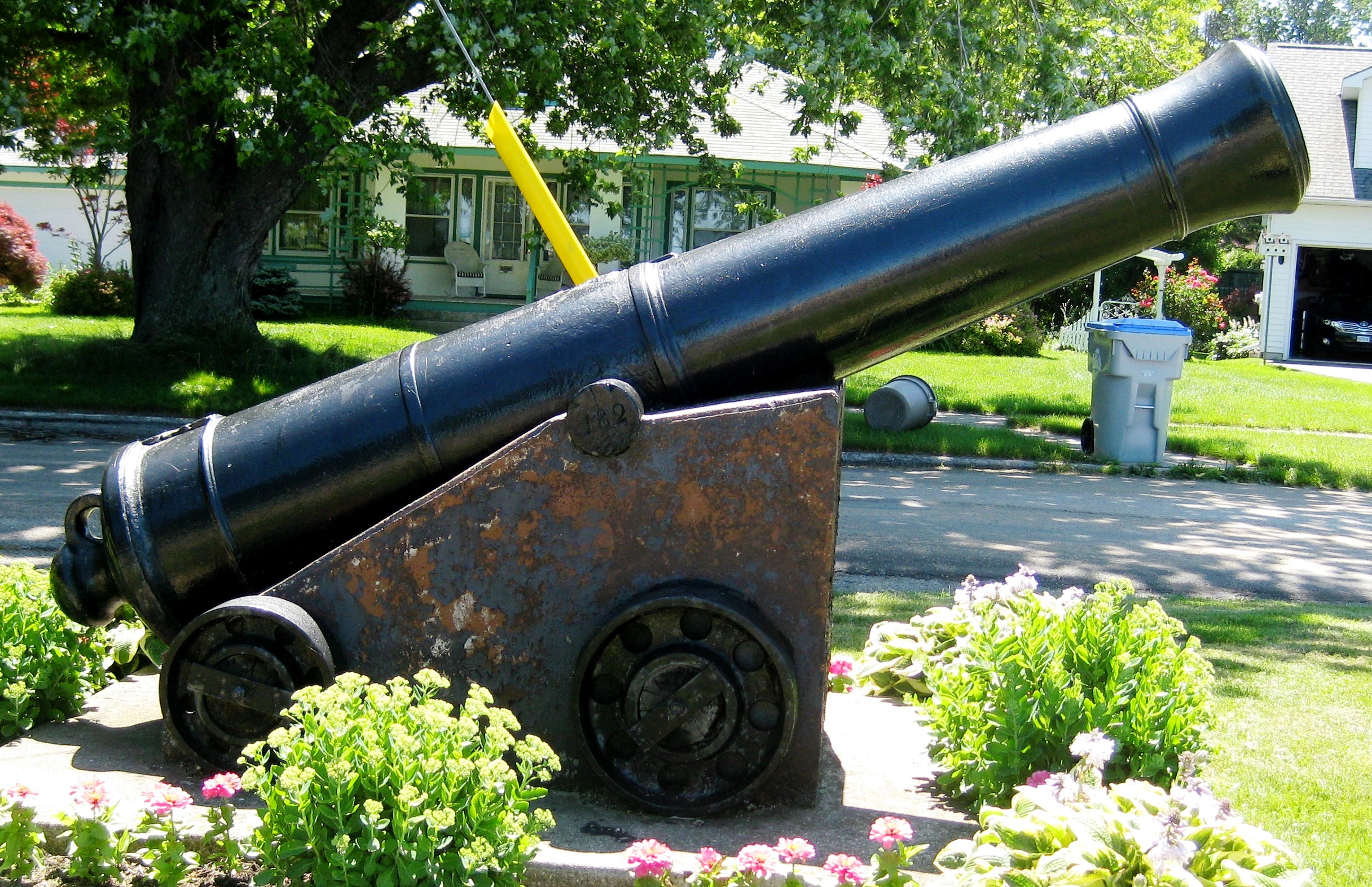

Blomefield Cast Iron 32-pounder 56-cwt Smoothbore Muzzleloading Gun, weight unknown, (Serial No. 63844, CARRON, 1803) Carron of Falkirk, Scotland, on the left trunnion, (32P) on the right trunnion, King George III cypher, broad arrow mark, mounted on an iron garrison carriage.  Wellesley Street.

Blomefield Cast Iron 6-pounder Smoothbore Muzzleloading Gun, weight 20-0-14 (2,254 lbs), (WCo), (Walker & Company of Rotherham, Yorkshire, England), on the left trunnion, (Serial No. 26) on right trunnion, 4, King George III cypher, broad arrow mark, mounted on a concrete stand.  Lions Park.

Blomefield Cast Iron 32-pounder 56-cwt Smoothbore Muzzleloading Gun, weight 55-3-14 (6,258 lbs), (WCo), (Walker & Company of Rotherham, Yorkshire, England), on the left trunnion, (Serial No. 182) on right trunnion, King George III cypher, broad arrow mark, MCMXXV.  Mounted on a concrete stand near the Lighthouse.

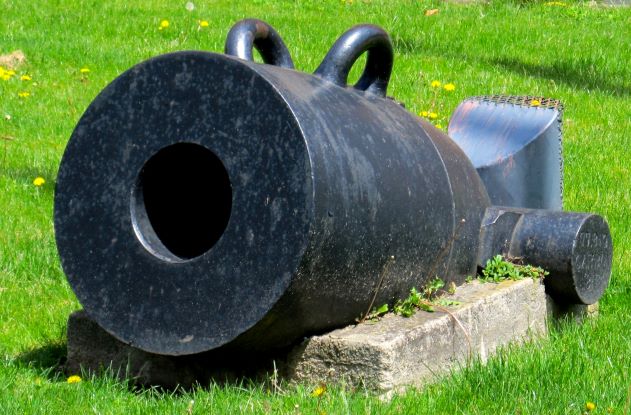

Cast Iron 10-inch 52-cwt Smoothbore Muzzleloading Land Service Mortar, weight 51-2-14 (5,782 lbs), (Serial No. 77661, CARRON, 1811), Carron of Falkirk, Scotland, on the left trunnion, blank on the right trunnion, no cypher, broad arrow mark, two Dolphin carrying handles, Huron County Museum.

Cast Iron 10-inch 52-cwt Smoothbore Muzzleloading Land Service Mortar, weight 52-0-9 (5,833 lbs),   (Serial No. 77779, CARRON, 1811), Carron of Falkirk, Scotland, on the left trunnion, blank on the right trunnion, no cypher, broad arrow mark, two Dolphin carrying handles, Huron County Museum.

Cast Iron 10-inch 52-cwt Smoothbore Muzzleloading Land Service Mortar, weight 51-3-14 (5,810 lbs), (Serial No. 77732, CARRON, 1811), Carron of Falkirk, Scotland, on the left trunnion, blank on the right trunnion, no cypher, broad arrow mark, two Dolphin carrying handles, Huron County Museum.

(JustSomePics Photo)

Cast Iron 10-inch 52-cwt Smoothbore Muzzleloading Land Service Mortar, weight 56-0-1 (6,273 lbs), (Serial No. 77812, CARRON, 1811), Carron of Falkirk, Scotland, on the left trunnion, blank on the right trunnion, no cypher, broad arrow mark, Dolphin carrying handles, Huron County Museum.

Ordnance Quick-Firing (QF) 25-pounder (87.6-mm/3.45-inch) Field Gun, C Mk. 2 with No. 9 circular firing platform, Limber and Field Artillery Tractor, Artillery Support Group.

Cast Iron Smoothbore Muzzleloading Carronade with a Blomefield pattern breeching ring, in a downtown park.

Goodenham

(Andre Blanchard Photos)

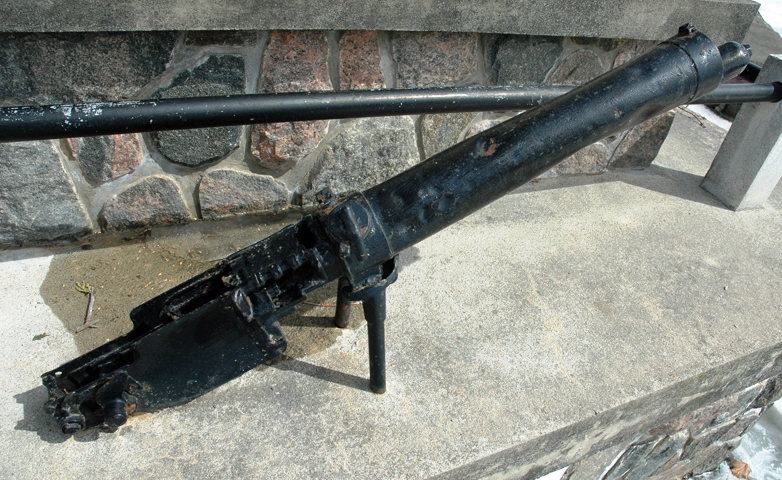

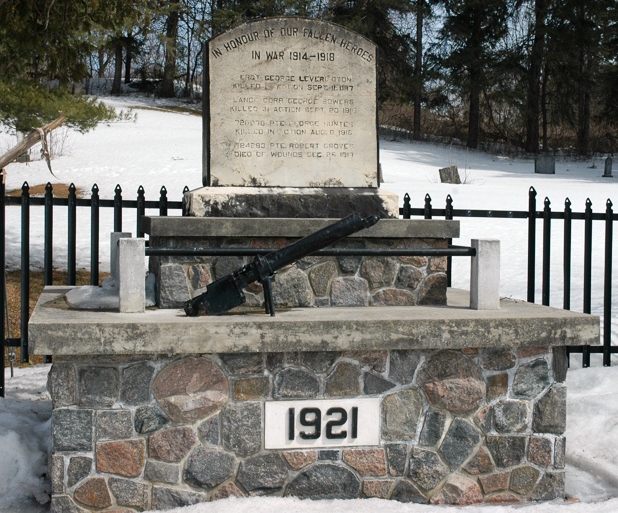

German First World War 7.92-mm Maxim Spandau MG 08/15 Machinegun (Serial Nr. unknown) mounted on the cenotaph.

Gorrie

German First World War 7.92-mm Maxim Spandau MG 08 Machine-gun (Serial Nr. unknown), mounted on a Schlitten stand, Royal Canadian Legion Branch No. 307, 2059 Victoria Street.

Grand Bend

(Doug and Sandra Photos)

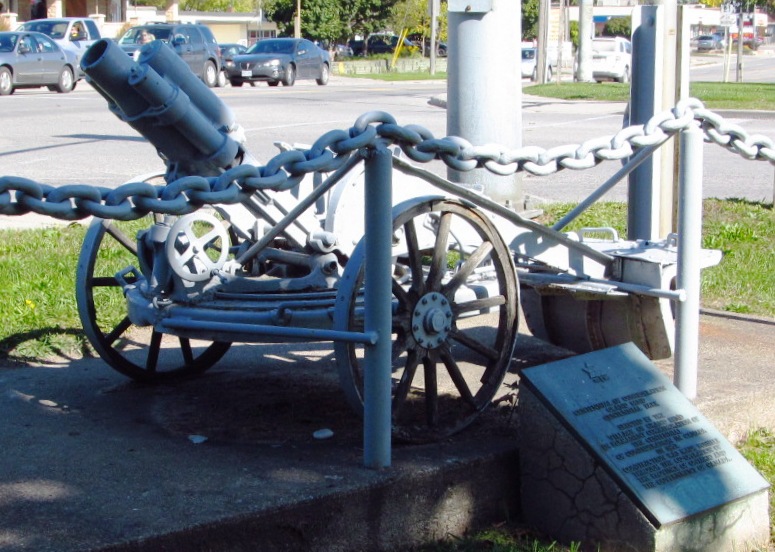

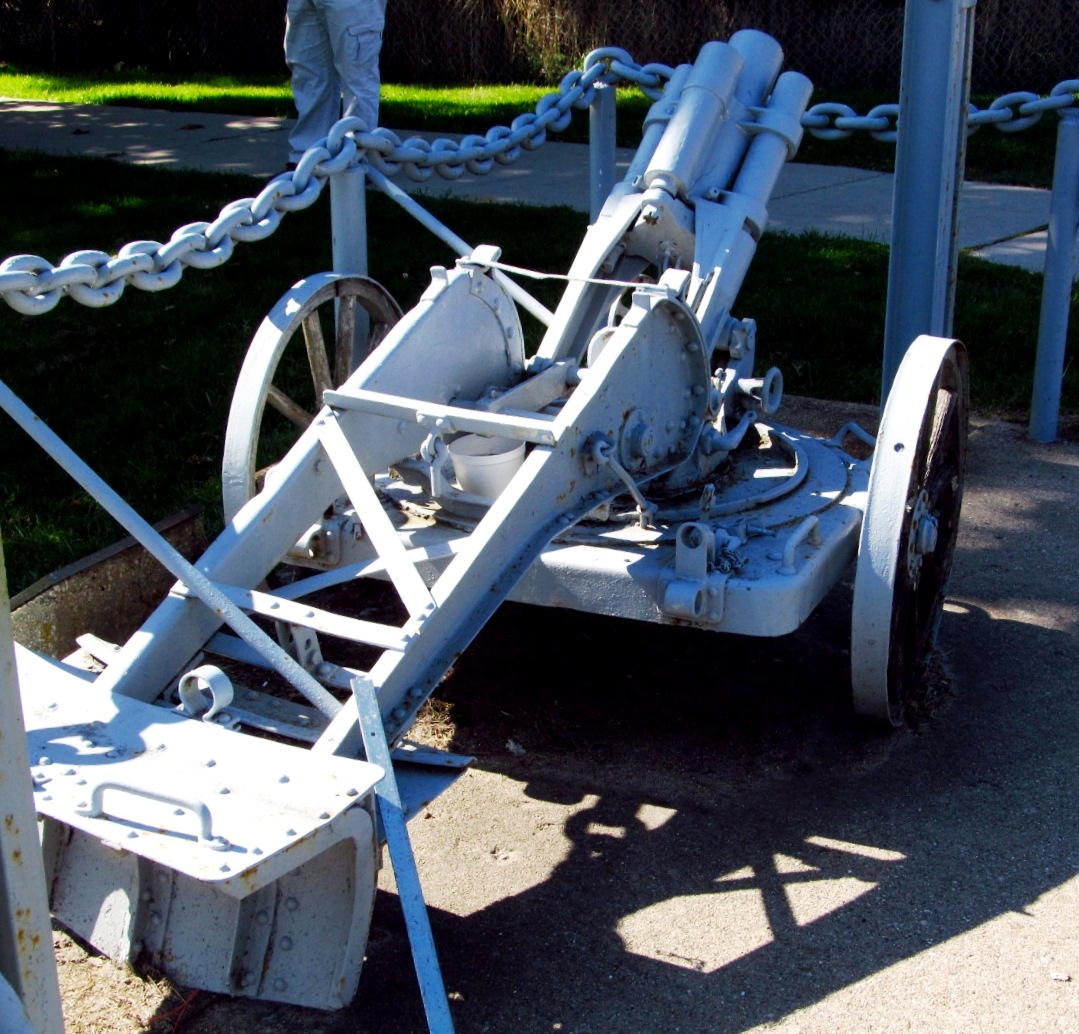

German First World War 7.58-cm leichtes Minenwerfer neuer Art, (7.58-cm leMW), possibly (Serial Nr. 6170), mounted on wheels on a concrete stand, Centennial Park, on the SW corner of Main St and Ontario St. (Hwy 21).

Guelph, 11th Field Artillery Regiment, RCA

The 11th Field Artillery Regiment, is a Primary Reserve Royal Canadian Artillery (RCA) regiment of Land Force Central Area’s 32 Canadian Brigade Group located in Guelph, Ontario.  11 Field Regiment sub-units include the 11th Field Battery (Hamilton-Wentworth), 16th Field Battery, and the 29th Field Battery.

Guelph

(Terry Honour Photo)

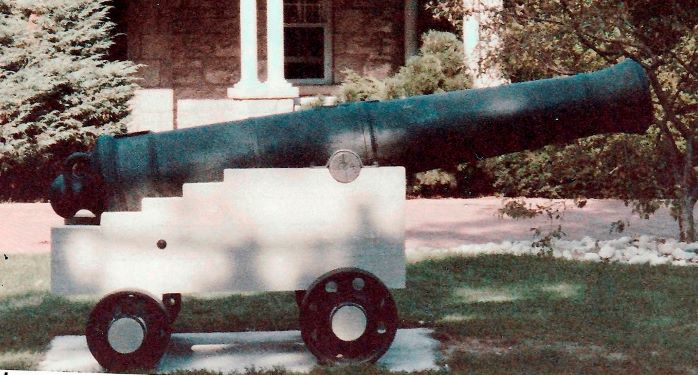

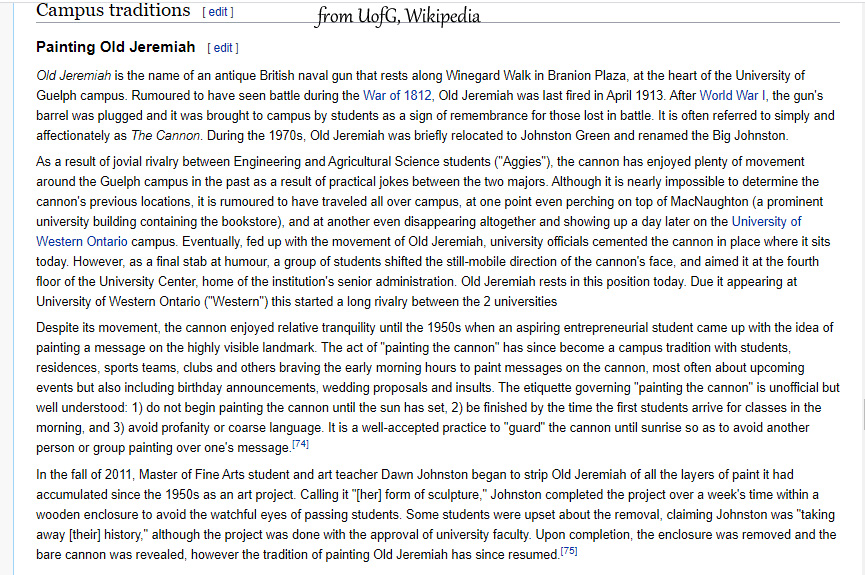

Blomefield Cast Iron 24-pounder 50-cwt Smoothbore Muzzleloading Gun, (>5,500 lbs), King George III cypher, broad arrow mark, ‘Old Jeremiah’ brought to Guelph campus in 1879.  This gun is mounted on a concrete stand on University grounds.

(Balcer Photos)

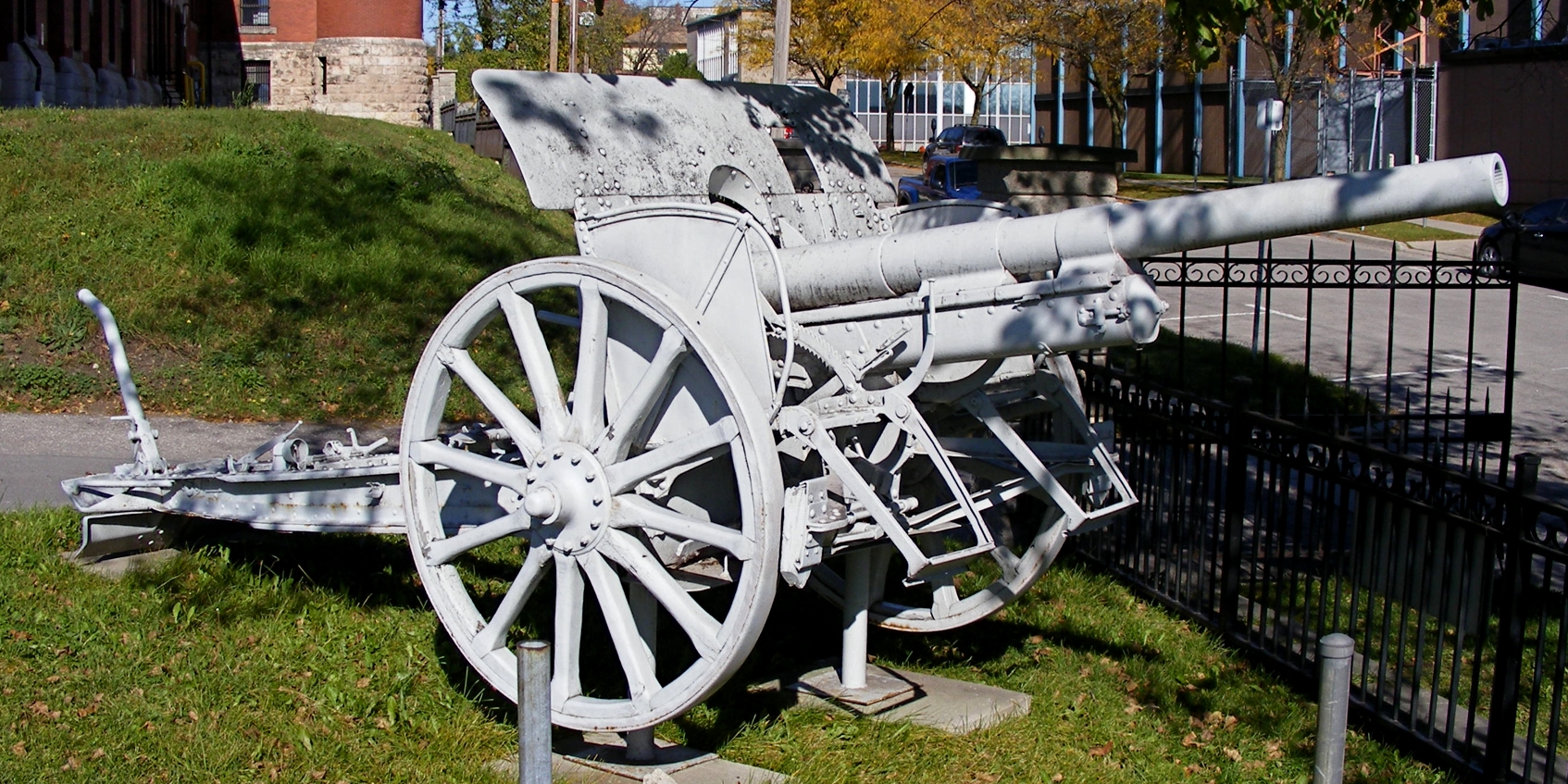

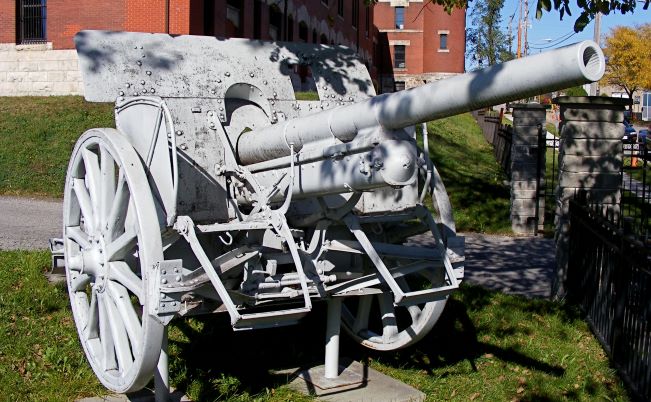

German First World War 7.7-cm Feldkanone 16 (7.7-cm FK 16), (Serial Nr. 101433).

(Terry Honour Photos)

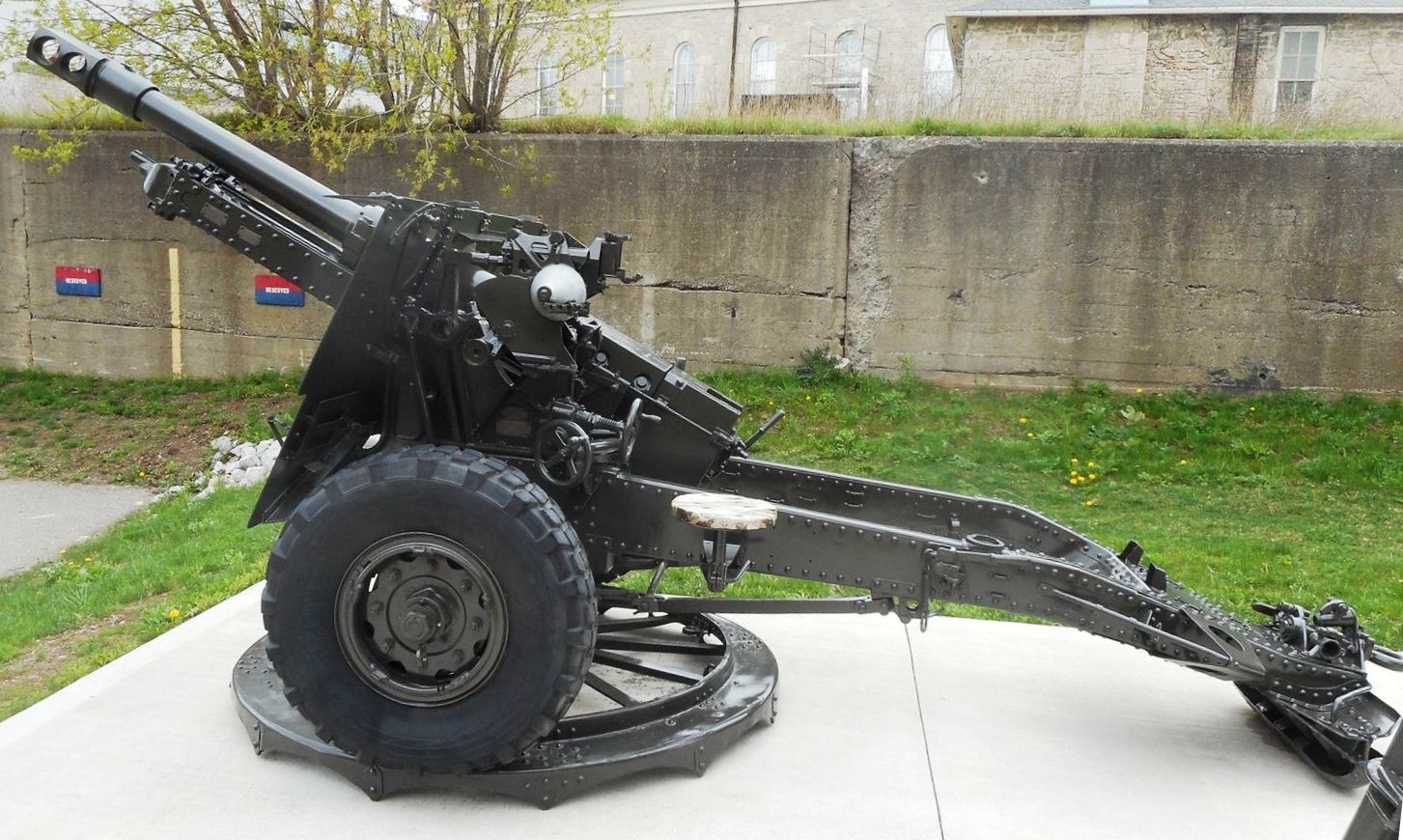

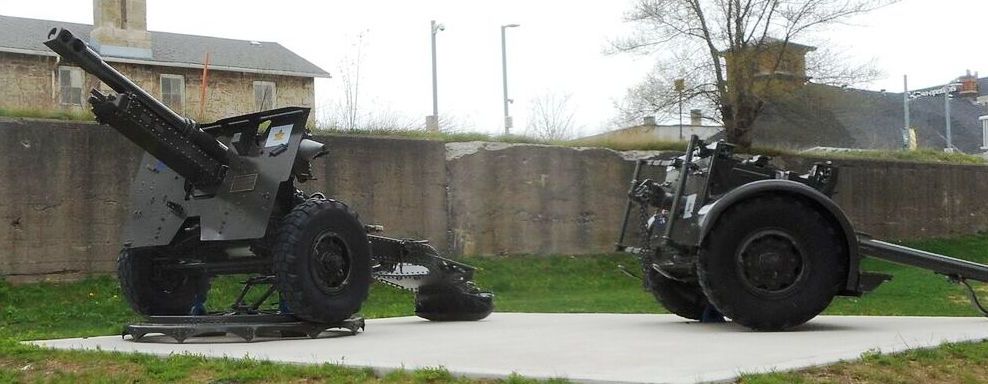

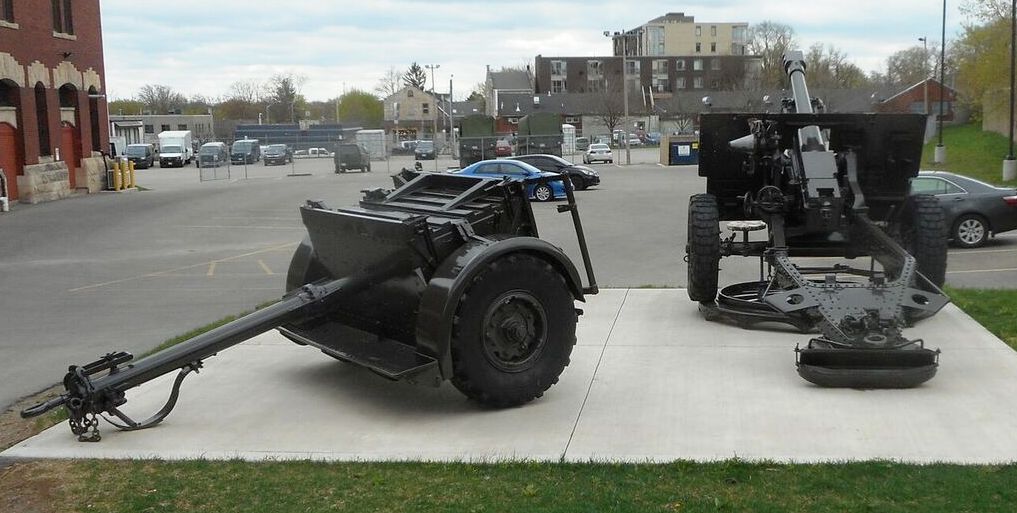

Ordnance Quick-Firing (QF) 25-pounder (87.6-mm/3.45-inch) Field Gun, C Mk. 2 with No. 9 circular firing platform, Guelph Armoury, 7 Wyndham St South, outside.

(Terry Honour Photos)

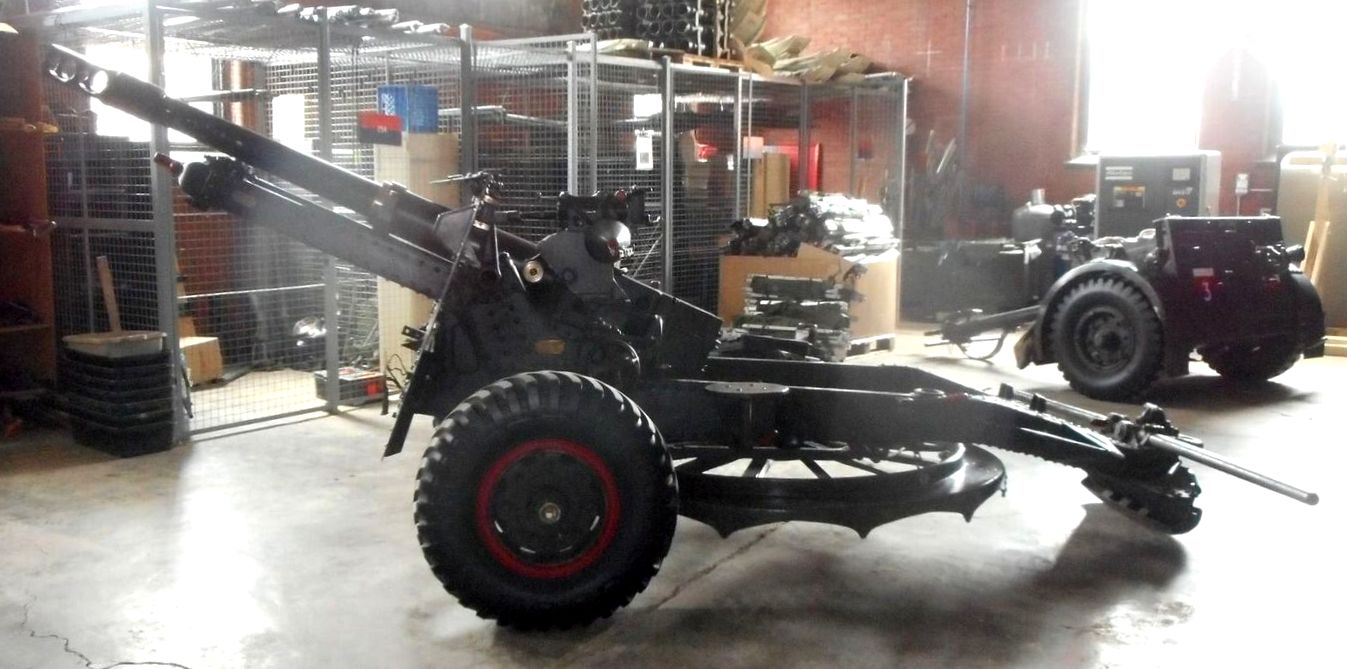

Ordnance Quick-Firing (QF) 25-pounder (87.6-mm/3.45-inch) Field Gun, C Mk. 2 with No. 9 circular firing platform, Guelph Armoury, 7 Wyndham St South, indoors.

(Terry Honour Photo)

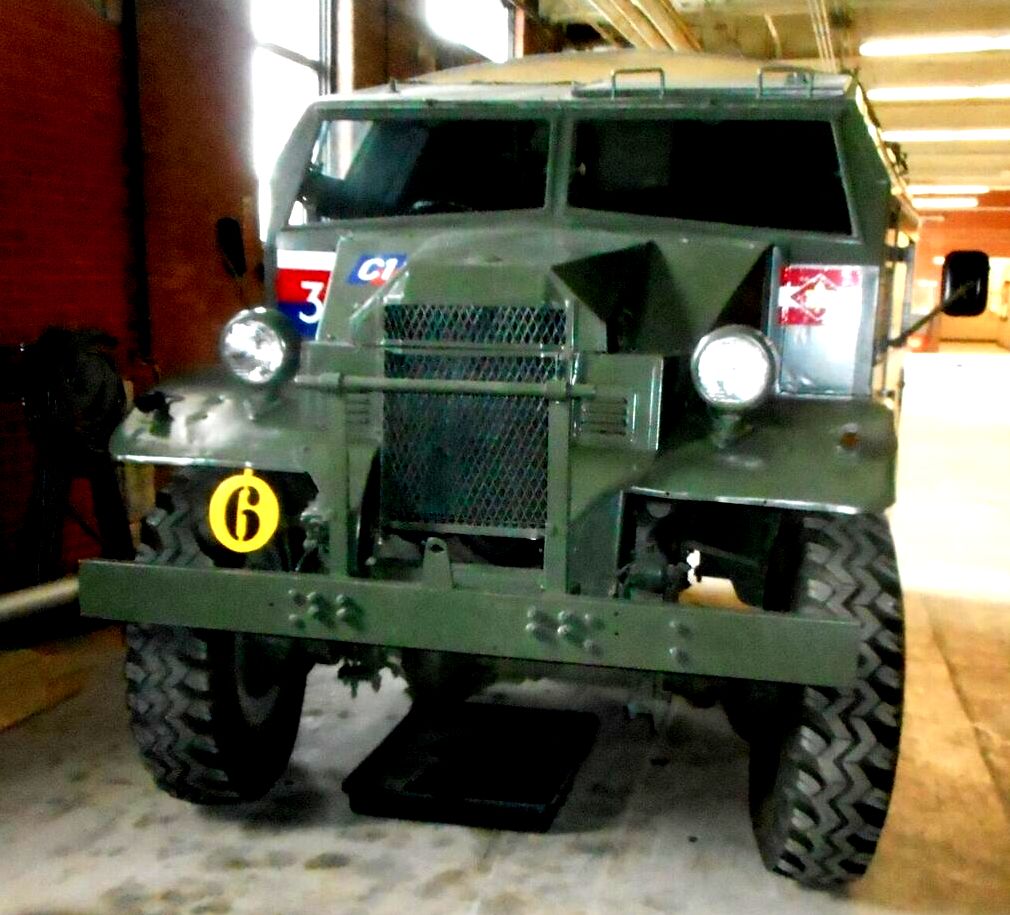

Canadian Military Pattern (CMP) Field Artillery Tractor (FAT) inside the armoury.

(Internet Photo)

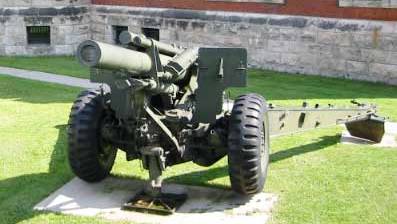

155-mm C1 (M1A2) Medium Howitzer on M1A2 Carriage, aka M114, manufactured at Sorel Industries Limited in Quebec, Queen Elizabeth II cypher.  Guelph Armoury, 7 Wyndham St South.

Haileybury

20 Pr Gun Mk 1 Barrel mounted in concrete (Serial No. H5764), Queen Elizabeth II Cypher.  East side of Cenotaph.

20 Pr Gun Mk I Barrel mounted in concrete, (Serial No.  29887), Queen Elizabeth II Cypher.  West side of Cenotaph.

Haliburton

(Tim Laye Photo)

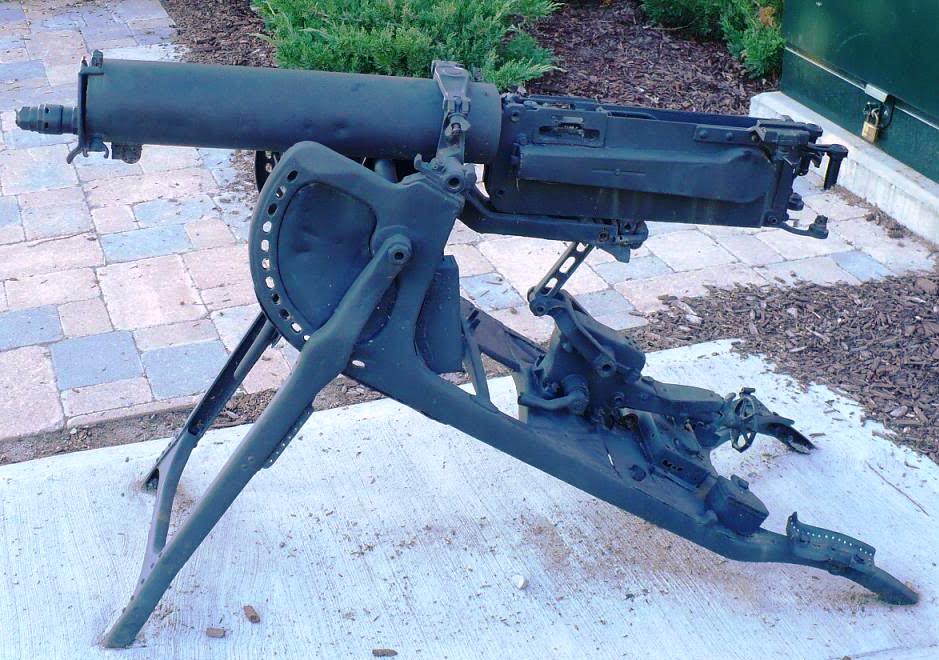

German First World War 7.92-mm Maxim Spandau MG 08 Machinegun (Serial Nr. 13366), mounted on a Schlitten stand.

(Tim Laye Photo)

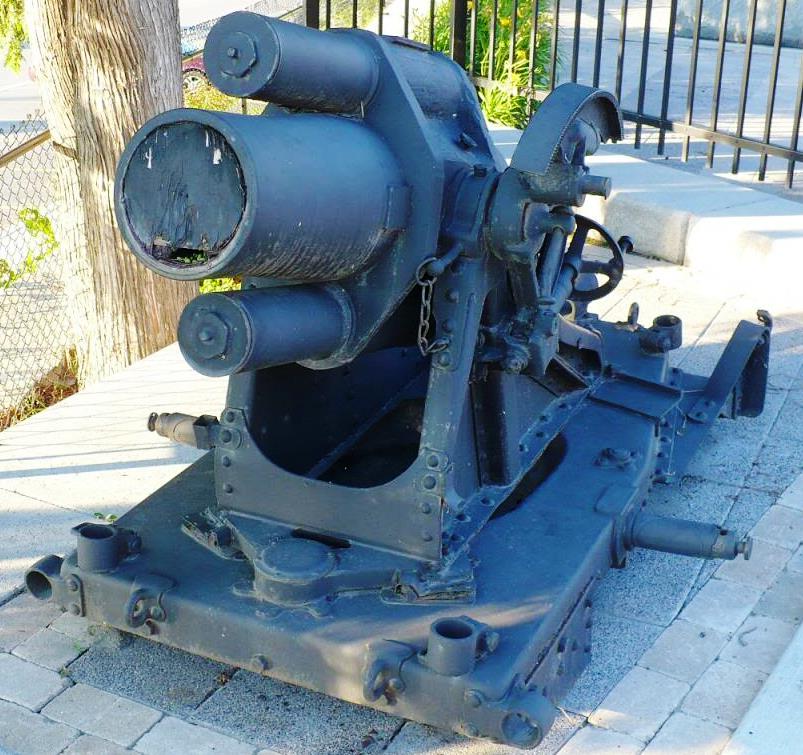

German First World War 17-cm mittlerer Minenwerfer (17-cm mMW), (Serial Nr. 6839), captured by the 43rd Battalion on 8 Aug 1918 at Dod Wood, SW of Demuin, France.
